Switch D-Link GO-SW-16G 16 Puertos/ RJ-45 10/100/1000 - Imagen 1

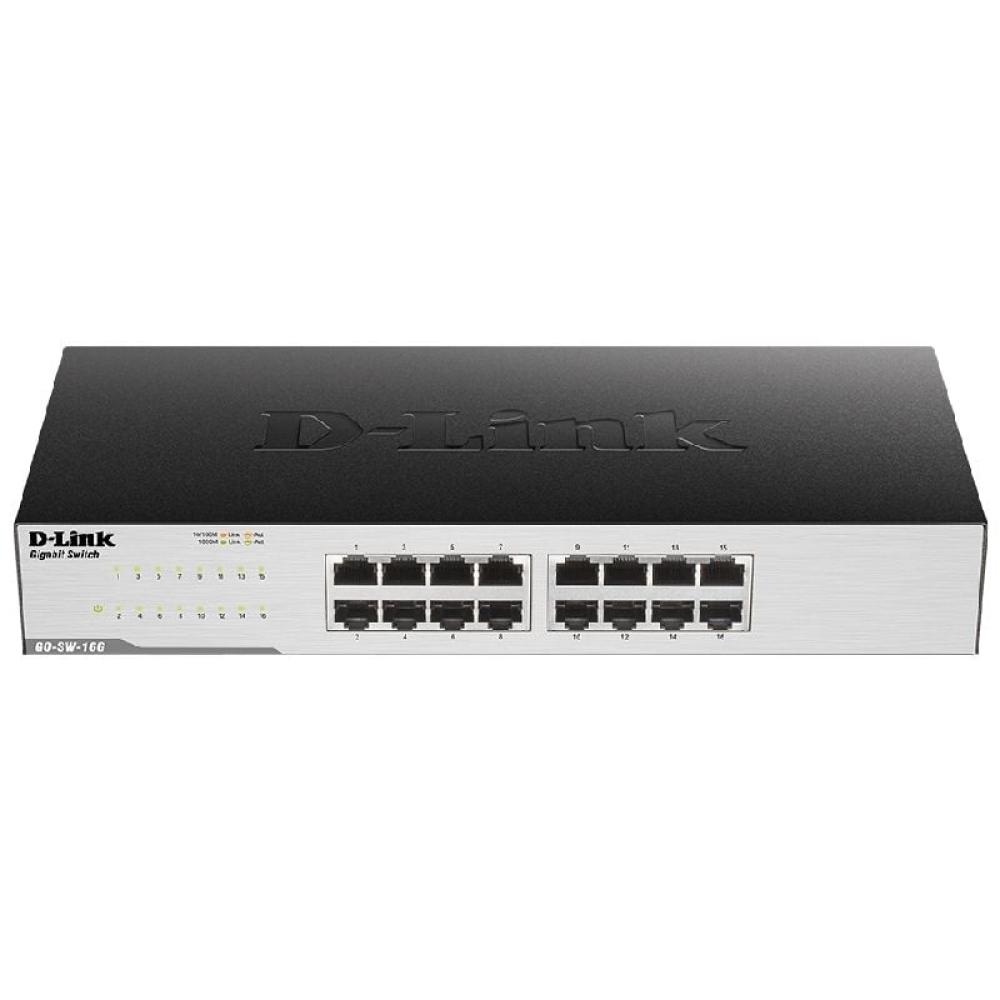

Switch D-Link GO-SW-16G 16 Puertos/ RJ-45 10/100/1000

71,30 €
Impuestos incluidos
DLINK
GO-SW-16G
0790069396618
56 Artículos

Productos relacionados (Hay 8 otros productos en la misma categoría)

Especificaciones técnicas
  • Físico

  • 16 Gigabit Ethernet
  • Fanless design for silent operation
  • Rendimiento

  • IEEE 802.3x Flow Control
  • Auto MDI/MDI-X crossover for all ports
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • Supports 9,216 Bytes Jumbo Frames
  • Eficiencia energética

  • Innovative D-Link Green Ethernet Technology conserves energy
  • Link status detection reduces power usage
  • Cable length detection uses energy more efficiently
  • 802.3az EEE hardware implementation reduces power consumptionsignificantly
  • RoHS compliant

  • Easy Installation
  • Plug-and-play installation saves you time
  • General

  • 16 10/100/1000 Gigabit ports
  • Standards

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation
  • IEEE 802.3x Flow Control
  • Data Tranfer Rates

  • Ethernet:
  • 10 Mbps (half duplex)
  • 20 Mbps (full duplex)
  • Fast Ethernet:
  • 100 Mbps (half duplex)
  • 200 Mbps (full duplex)
  • Gigabit Ethernet:
  • 2000 Mbps (full duplex)
  • Network Cables
  • 10BASE-T:
  • UTP CAT 3, 4, 5/5e (100 m max)
  • EIA/TIA-586 100-ohm STP (100 m max)
  • 100BASE-TX, 1000BASE-T:
  • UTP CAT 5/5e (100 m max)
  • EIA/TIA-568 100-ohm STP (100 m max)
  • Funcionalidad

  • D-Link Green Features
  • IEEE 802.3az Energy Efficient Ethernet (EEE)
  • Link status detection power saving
  • Cable length detection power saving
  • LAN Features
  • Back pressure at half-duplex operation
  • Auto MDI/MDIX
  • Wire speed reception and transmission
  • Store-and-Forward switching method
  • 8K MAC addresses
  • 2 Mbits RAM for data buffering
  • Jumbo Frames: 9216 Bytes
  • Capacidad de conmutación

  • GO-SW-16G - 32 Gbps
  • Port Packet Filtering

  • 10M: 14,880 pps
  • 100M: 148,800 pps
  • 1000M: 1,488,000 pps
  • LEDs

  • Power LED
  • GO-SW-16G - 16 Link/Activity/Speed LEDs (one perport)
  • Power Inputs

  • GO-SW-16G - Switching 12V/1A level V power adapter
  • Consumo

  • Power on (standby):
  • GO-SW-16G - AC input: 2.64 Watts
  • Power max.:
  • GO-SW-16G - AC input: 9.00 Watts
  • MTBF

  • GO-SW-16G - 319,267 hours
  • Dimensiones

  • GO-SW-16G - 280 x 126 x 46 mm
  • Peso

  • GO-SW-16G - 0.87 Kg
DLINK
GO-SW-16G
56 Artículos

Ficha de datos

Numero de Puertos
16 RJ45
Velocidad
10 - 100 - 1000 Mbps
